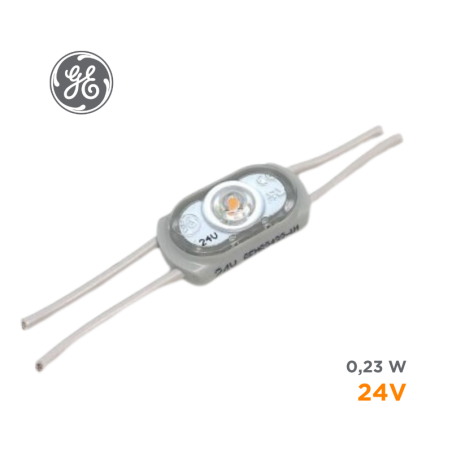

LED modules miniMAX MS - 24V

Powerful all new OptiLensTM X

Tetra® MS features all new OptiLensTM X a new patented technology that allows for an incredible 165° viewing angle. The all new Tetra® MS is your best option to significantly reduce energy and maintenance costs.

Power Supply Loading

The new 24V Tetra® MS loading improves 41% from the previous 12V generation. Now load up to 85 feet (25.9 m) or 340 modules of product per GEPS24-100U-NA power supply.

Improved stroke spacing/ New Flow Channels

The new 24V Tetra® MS stroke spacing has improved on average (Depth/Stroke Spacing 1.5”/6”, 3”/10”, 4”/14”, 5”/17”), requiring less product, thanks to the new OptiLensTM X wide beam angle.

Tetra® MS Features

• Wide 165° beam angle
• Improved luminous intensity
• Efficacy: 119 lm/W
• 24 Volt DC, Class 2 (UL), Class III (IEC)
• UL Wet Rated & IP66- no separate enclosure is required

• 10 years limited Warranty

Tetra® MS—the 24V remarkable LED system designed for small channel letters

as shallow as 1.5 inches in depth delivers incredibly uniform light, installs easily and operates efficiently.

The Tetra® MS isnow IP66 and UL wet rated which makes it more robust and reliable even under wet weather.

<

<
