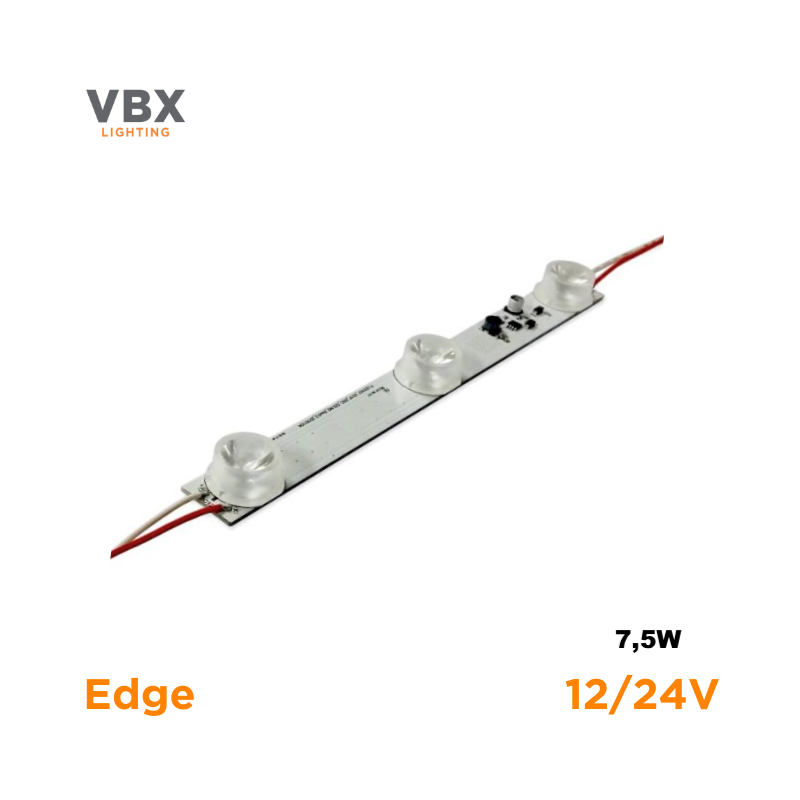

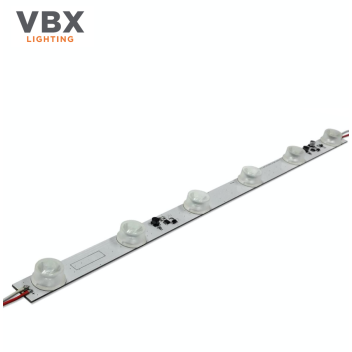

VBX 357 PCB Edge LED Modules

Name: VBX 357 PCB Edge LED Modules
Brand: VBX Lighting
SKU: 181
Price: 17.08 EUR
Availability: InStock

€17.08

Tax included

VBX357 PCB is a edge-lit LED system for single and double face boxes. VBX357 PCB has 15°x40° narrow beam angle so that it can provide uniformed lighting distribution to the front or rear cover of the boxes by lighting from the sides.

Manufacturer: VBX Lighting

In stock: 27 pieces

Color

4000K
6500K

SIZE

236 mm

Quantity request:

Shipped within 1-2 days.

100% secure payments

Description

FEATURES

• Low power consumption (6500K short: 7W, long: 14W)

• Narrow Beam Angle 15°x40° provides the uniformed lighting to the front or rear cover of the boxes by lighting from sides

• High Brightness

• Dimmable at 12VDC

• Long Life time (>50,000hrs based on 70% light output)

• Easy installation and maintenance

• Safety due to low working voltage(12VDC or 24VDC)

• 5years warranty

APPLICATIONS

• Sign applications (single and double face boxes) • Indoor & Outdoor lighting decorations

CERTIFICATIONS

• UL(E258512),CE, RoHS

Attachments

VBX357 DataSheet

Product Details

Reference: BFL357-DN12-PCB

Data sheet

Full Packaging: 8 Modules. Price for single module.
Input voltage: 12V dimmable or 24V not dimmable
Power: 7W
Lumen [lm]: 833Lumen
Color CCT: 6500K, 4000K
Nominal beam angle [°]: 15°x40° (at 50% of max intensity)
Size: 236x23xH14,3mm, 500x23xH14,3mm
