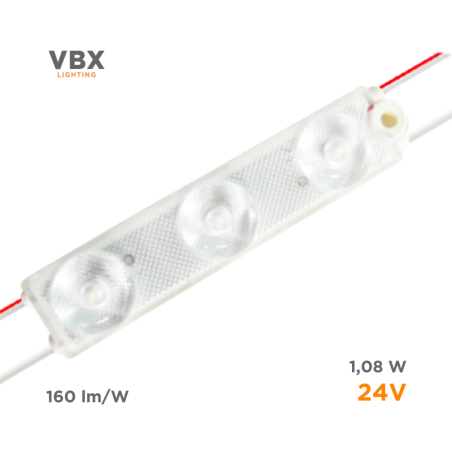

Moduli LED VBX Diamond 3

Name: Moduli LED VBX Diamond 3
Brand: VBX Lighting
SKU: 741
Price: 1.65 EUR
Availability: InStock

€1.65

Tax included

LED modules at 24V at constant current for uniform and efficient lighting even at high thicknesses thanks to the innovative lens design. New technology to achieve high efficiency. High beam angle 175°. IP67 protection rating for outdoor installation. Also suitable for indoors thanks to CRI>80. For illuminated signs, channel letters, light boxes, backlighting; for lighting, advertising, decoration. Equipped with double-sided adhesive and screw hole.

Ideal for depths from 100 mm to 125 mm

Manufacturer: VBX Lighting

In stock: 5445 pieces

Color

4000K
6500K

Output Volts

24 Volt

Quantity request:

Shipped within 1-2 days.

100% secure payments

Description

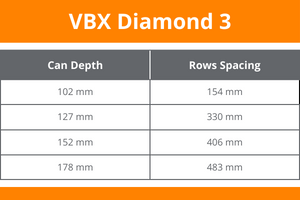

The table refers to the maximum distance applicable between LED module rows in relation to the can depth.

Attachments

VBX Diamond3 cc led module EN-IT

Product Details

Reference: VBX1329

Data sheet

Full Packaging: 100 modules. Price for single module.
Input voltage: 24V
Power: 1,08W
Lumen [lm]: 160-164 Lm 4000K-6500K
Color CCT: 4000K, 6500K
Nominal beam angle [°]: 175°
Size: 75x16xH11 mm
IP: 67
Pitch: 220
LED Chip: Lumileds
Energy Efficiency Class: D
