Quick view

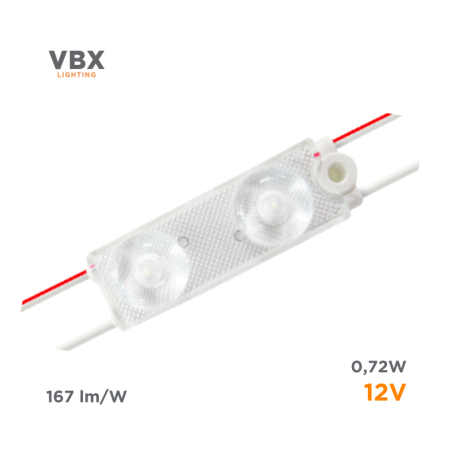

Moduli LED VBX Diamond 2 12V

Name: Moduli LED VBX Diamond 2 12V
Brand: VBX Lighting
SKU: 791
Price: 1.2 EUR
Availability: InStock

€1.20

Tax included

LED modules at 24V for uniform and efficient lighting even at high thicknesses thanks to the innovative lens design. New technology to achieve high efficiency. High beam angle 175°. IP67 protection rating for outdoor installation. Also suitable for indoors thanks to CRI>80. For illuminated signs, channel letters, light boxes, backlighting; for lighting, advertising, decoration. Equipped with double-sided adhesive and screw hole.

Ideal for depths from 50 mm to 100 mm

Manufacturer: VBX Lighting

In stock: 1210 pieces

Color

6500K

Output Volts

12 Volt

Quantity request:

Shipped within 1-2 days.

100% secure payments

Description

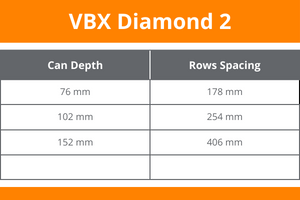

The table refers to the maximum distance applicable between LED module rows in relation to the can depth.

Attachments

VBX Diamond2 cc12V EN-IT

Product Details

Reference: VBX1374

Data sheet

Full Packaging: 90 modules (30x3). Price for single module.
Input voltage: 12 V
Power: 0,72 W
Lumen [lm]: 120
122
Color CCT: 6500K-7000K
Nominal beam angle [°]: 175°
Size: 50x16 xH11 mm
IP: 67
Pitch: 180 mm
Warranty: 5 Years
LED Chip: Lumileds
Energy Efficiency Class: D
