DESIGN YOUR LUMINOUS SIGN

PROJECT
Quick view

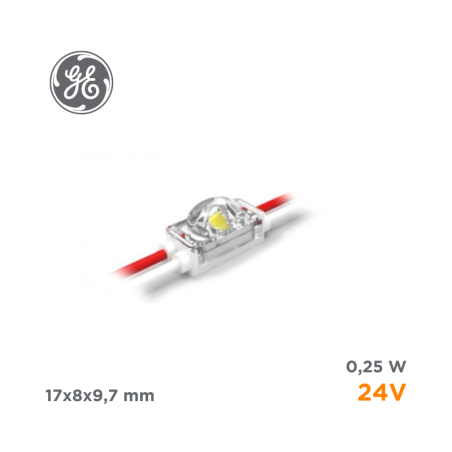

Tetra Atom LED Modules
  • Tetra Atom LED Modules

Tetra Atom LED Modules

€1.86
Tax included

Tetra® Atom —the unique 24V LED system designed for channel letters as shallow as 1 inch in depth delivers incredibly uniform light, installs easily and operates efficiently. Tetra® Atom also features constant current technology, for even light across the entire run without the need for center tapping.

GE Current - General Electric
1609 pieces
Color
Quantity request:
Shipped within 1-2 days.

100% secure payments

Description

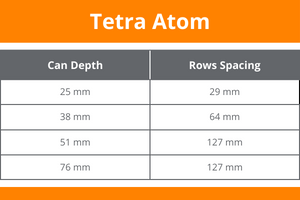

The table refers to the maximum distance applicable between LED module rows in relation to the can depth.



Best-in-class loading

Load 300 Tetra® Atom modules per 100W power supply, up to twice as much as our competitors’ solutions. Half the power supplies means half the material and labor costs: only with Tetra®.

Tetra® for every sign

Designed to meet the evolving needs of sign shops, Tetra® Atom delivers bright, uniform light in shallow channel letters, routed acrylic block letters, and halo-lit applications as shallow as 1” deep.

Tetra® Atom Features


• Wide 165° x 140° beam angle
• Improved luminous intensity
• Efficacy: 124 lm/W
• 24 Volt DC, Class 2 (UL), Class III (IEC) • UL Wet Rated & IP66
• 5-year limited warranty

Attachments

TETRA Atom DataSheet

Atom Installation & UL guide

Product Details

GEAM2432-W1

Data sheet

Full Packaging
120 modules. Price for single module.
Input voltage
24
Power
0,25
Lumen [lm]
31
Nominal beam angle [°]
165°x140°
Size
17x8x h9,7
Standard
Pitch
5,1cm
Energy Efficiency Class
E (F 3200K)
