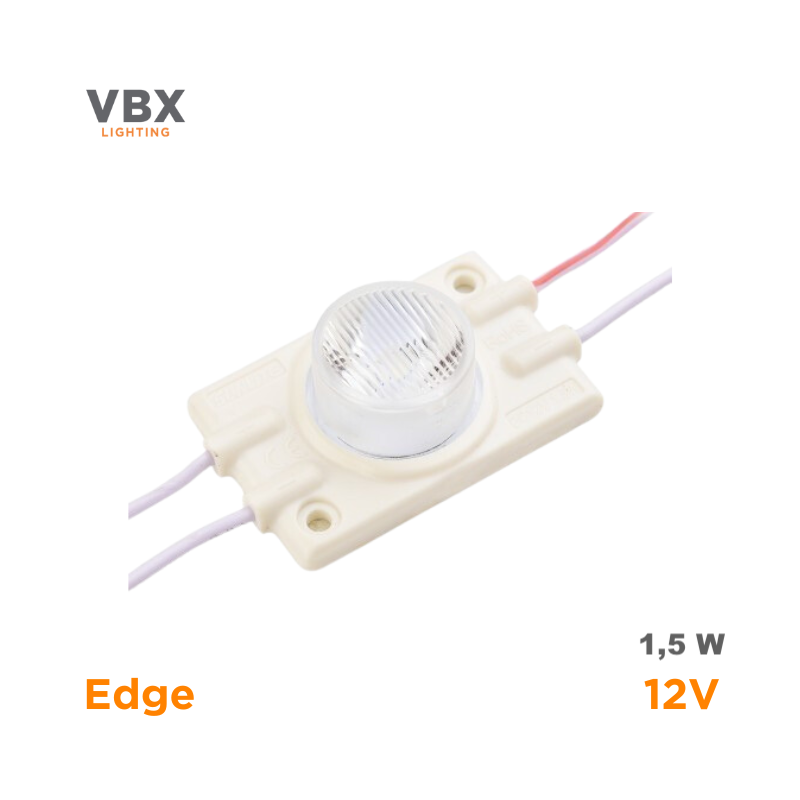

LED Module VBX SideEdge 1LED

Name: LED Module VBX SideEdge 1LED
Brand: VBX Lighting
SKU: 252
Price: 2.07 EUR
Availability: InStock

€2.07

Tax included

VBX Side Edge

Universal solution for double-sided lightboxes. Special lens with elliptical 6°х45° beam angle provides possibility to illuminate two sides.

Manufacturer: VBX Lighting

In stock: 2850 pieces

Power

1,5W
3W

Quantity request:

Shipped within 1-2 days.

100% secure payments

Description

VBX Side Edge

Universal solution for double-sided lightboxes. Special lens with elliptical beam angle provides possibility to illuminate two sides once installed on the edges of construction. Now you need only one type of solution to cover range of 600-2500 mm height of lightbox with uniform illumination on both sides.

Application:
Applicable place: Shopping malls, airport, subway, bus station and other places of side lighting light box.
Scope of application: 10-20cm thickness of single-side/double-side light box

Product Features:
The housing using ABS flame retardant engineering material, high flame retardant, high safely and reliability.
Adopt high bright LED, low light degradation, quick heat dissipation, high lighting efficiency
Injection craft, aluminum PCB exposed with better heat dissipation Stable & reliable performance, long lifespan & good consistency
CE & RoHS certificates, IP65 protection class testing

Installation:
Installation method: Installed on the side of box, back glue auxiliary positioning, fixed with screw
Cascade cuttable: single led module can be cut

Warranty:
3years

Attachments

VBX edge module 1led EN-IT

Product Details

Reference: VBX1144

Data sheet

Full Packaging: 100 modules. Price for single module.
Input voltage: 12
Power: 1,3W -2,8W
Lumen [lm]: 127 Lumen- 238 Lumen
Color CCT: 7000K - 6700K
Nominal beam angle [°]: 15°/43° - 15°/27°
Size: 42x32 - 49x31 mm H14,2mm
IP: 65
Pitch: 190mm - 130mm
Energy Efficiency Class: F (1,5W) G (3W)
