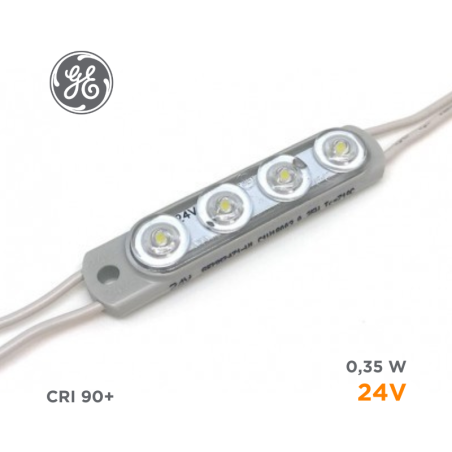

Tetra miniMAX LED Modules
€2.90
Tax included
Tetra® miniMAX—the 24V remarkable LED system designed for small channel letters
as shallow as 1.5 inches in depth delivers incredibly uniform light, installs easily and operates efficiently. The Tetra® miniMAX is now IP66 and UL wet rated which makes it more robust and reliable even under wet weather.
3119 pieces
Description
Powerful all new OptiLensTM X
Tetra® miniMAX features all new OptiLensTM X a new patented technology that allows for an incredible 175° viewing angle. The all new Tetra® miniMAX is your best option to significantly reduce energy and maintenance costs.
Power Supply LoadingThe new 24V Tetra® miniMAX loading improves 38% from the previous 12V generation. Now load up to 110 feet (33.5 m) or 220 modules of product per GEPS24-100U-NA power supply.
Improved stroke spacing/ New Flow ChannelsThe new 24V Tetra® miniMAX stroke spacing has improved on average by 37% (Depth/Stroke Spacing 3”/10”, 4”/14”, 5”/17”), requiring less product, thanks to the new OptiLensTM X wide beam angle. In addition, its new silicone flow channels have increased bonding strength by 10-20%.
Tetra® miniMAX Features
• Wide 175° beam angle
• Improved luminous intensity
• Efficacy: 157 lm/W
• 24 Volt DC, Class 2 (UL), Class III (IEC)
• UL Wet Rated & IP66- no separate enclosure is required
• 10 years limited Warranty
Tetra® miniMAX—the 24V remarkable LED system designed for small channel letters
as shallow as 1.5 inches in depth delivers incredibly uniform light,
installs easily and operates efficiently.
The Tetra® miniMAX is now IP66 and UL wet rated which makes it more robust and reliable even under wet weather.
Attachments
Product Details
GEMM2432-W1
Data sheet
- Full Packaging
- 40 modules. Price for single module.
- Input voltage
- 24
- Power
- 0,35W (white)
- Lumen [lm]
- 55Lumen (white)
- Color CCT
- 2700K 3200K, 4100H, 5000K, 7100K
- Nominal beam angle [°]
- 175
- C.R.I
- 90+
- Size
- 61x 11 x 13,6 mm
- IP
- 66
- Color
- Red(0,34W) Blu (0,48W) Green (0,26W) Orange (0,46W)
- Standard
- UL
- Pitch
- 152mm
- Max led module in one line
- 220
- Warranty
- 10 years
- LED Chip
- Nichia
- Energy Efficiency Class
- D (E 3200K)
