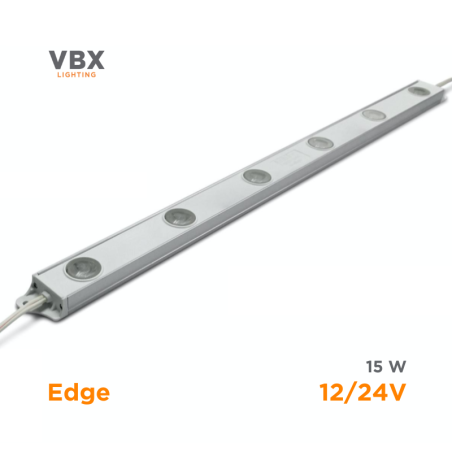

VBX 357 LONG LED Modules - Edge
  • VBX 357 LONG LED Modules - Edge

VBX 357 LONG LED Modules - Edge

€45.75
Tax included

VBX357 LONG is a edge-lit LED system for single and double face boxes. VBX357 LONG has 15°x40° narrow beam angle so that it can provide uniformed lighting distribution to the front or rear cover of the boxes by lighting from the sides.

VBX Lighting
12 pieces
Color
Quantity request:
Shipped within 1-2 days.

100% secure payments

Description

FEATURES

• Low power consumption (6500K long: 14W)

• Narrow Beam Angle 15°x40° provides the uniformed lighting to the front or rear cover of the boxes by lighting from sides

• High Brightness

• Dimmable at 12VDC

• Long Life time (>50,000hrs based on 70% light output)

• Easy installation and maintenance


• Safety due to low working voltage(12VDC or 24VDC)


• 5years warranty

APPLICATIONS

• Sign applications (single and double face boxes) • Indoor & Outdoor lighting decorations

CERTIFICATIONS

• UL(E258512),CE, RoHS

Attachments

VBX357 DataSheet

Product Details

BFL357-DN12-LONG

Data sheet

Full Packaging
8 Modules. Price for single module.
Input voltage
12V dimmabile o 24V non dimmabile
Power
14,2W- 15W-14W (3000K-4000K-6500K)
Nominal beam angle [°]
15°x40° (at 50% of max intensity)
C.R.I
80+
Size
539x32xH15,5 ì
IP
67
Pitch
700mm
Energy Efficiency Class
E
